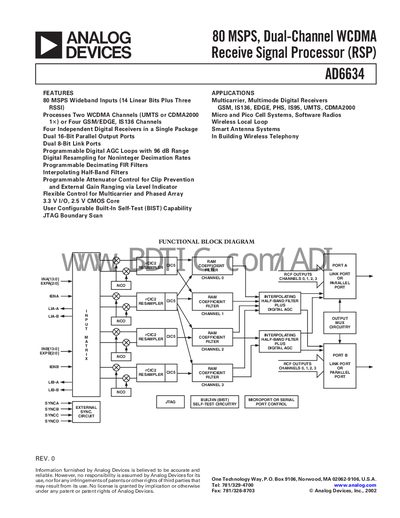

The AD6634 is an 80 MSPS dual-channel WCDMA receive signal processor with wideband inputs and multiple features. It can process two WCDMA channels or four GSM/EDGE, IS136 channels, and has four independent digital receivers. The product also features programmable digital automatic gain control loops, digital resampling, and programmable FIR filters.
The AD6634 is a multimode 4‑channel digital receive signal processor (RSP) that can handle up to two WCDMA channels or four GSM/EDGE channels. It integrates a frequency translator, cascaded decimating FIR filters, a programmable RAM‑based FIR filter, and half‑band interpolation, providing flexible multicarrier and phased‑array operation. Dual 16‑bit parallel ports and dual 8‑bit link ports deliver high‑speed data to DSPs such as Analog Devices’ TigerSHARC.
Key features include 80 MSPS wideband inputs, programmable digital AGC loops with a 96 dB range, built‑in self‑test (BIST), JTAG boundary‑scan support, and a 196‑lead CSPBGA package. The device operates from 2.25‑2.75 V (VDD) and 3.0‑3.6 V (VDDIO) and is rated for –40 °C to +85 °C.
| Maximum Sample Rate | 80 MSPS |
|---|---|
| Number of Digital Receivers | Four |
| Parallel Output Width | Dual 16‑Bit |
| Link Port Width | Dual 8‑Bit |
| AGC Gain Range | 96 dB |
| Package Type | 196‑Lead CSPBGA |
The AD6634 can sample at up to 80 MSPS.
It contains four independent digital receivers in a single package.
The digital AGC loops provide a programmable gain range of 96 dB.
