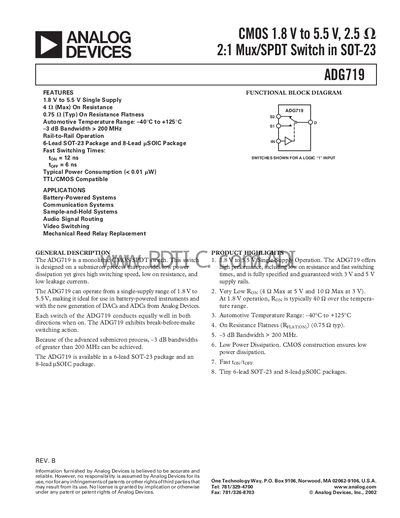

ADG719 is a monolithic CMOS SPDT switch with features such as low power dissipation, high switching speed, low on resistance, and low leakage currents. It operates from a single-supply range of 1.8V to 5.5V, making it ideal for battery-powered instruments.
The ADG719 is a monolithic CMOS SPDT switch designed for low on‑resistance, fast switching (ton ≈ 12 ns, torr ≈ 6 ns) and low power consumption. It operates from a single 1.8 V to 5.5 V supply and is suitable for battery‑powered instruments, communication systems, audio/video routing and mechanical reed‑relay replacement.
Key specifications include a typical on‑resistance of 0.75 Ω, a maximum on‑resistance of 4 Ω, -3 dB bandwidth greater than 200 MHz, off‑isolation better than –67 dB up to 10 MHz, and automotive temperature range of –40 °C to +125 °C. The device is offered in 6‑lead SOT‑23 and 8‑lead SOIC packages with low power dissipation (282 mW SOT‑23, 315 mW SOIC).
| Supply Voltage Range | 1.8 V to 5.5 V |
|---|---|
| Typical On‑Resistance | 0.75 Ω |
| Maximum On‑Resistance | 4 Ω |
| Bandwidth (-3 dB) | >200 MHz |
| Off‑Isolation (typical) | -67 dB |
| Switching Time (ton) | 12 ns typ |
| Switching Time (torr) | 6 ns typ |
| Operating Temperature Range (Industrial) | -40 °C to +125 °C |
| Power Dissipation (SOT‑23) | 282 mW |
| Power Dissipation (SOIC) | 315 mW |
The ADG719 operates from a single supply of 1.8 V to 5.5 V.
Typical on‑resistance is 0.75 Ω.
The device provides a -3 dB bandwidth greater than 200 MHz.
It is rated for –40 °C to +125 °C.
