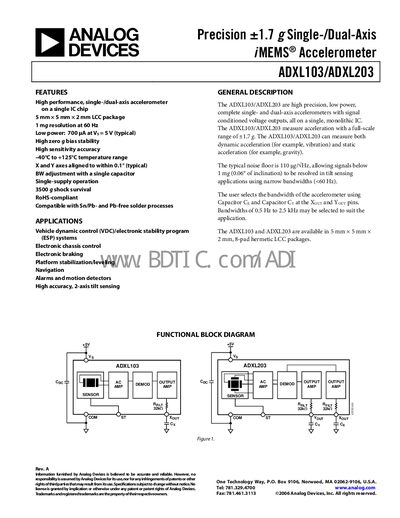

The ADXL103/ADXL203 is a high precision, low power, single/dual-axis accelerometer with high sensitivity and stability. It is suitable for applications such as vehicle dynamic control, electronic stability programs, and platform stabilization.
This handbook describes the high‑precision, low‑power ADXL103 and ADXL203 single‑ and dual‑axis MEMS accelerometers. It covers features, applications, general description, and detailed specifications such as measurement range, sensitivity, noise performance, and absolute maximum ratings.
The document also includes pin configurations, typical performance characteristics, self‑test procedures, power‑supply decoupling, bandwidth selection, and guidance for using the devices as dual‑axis tilt sensors. An ordering guide and outline dimensions are provided at the end.
