ADXRS622 is a gyroscope manufactured by ADI company. It has high reliability, small size, low power consumption and other features. It can be used in vehicle chassis rollover detection, inertial measurement units, platform stabilization and other application scenarios.

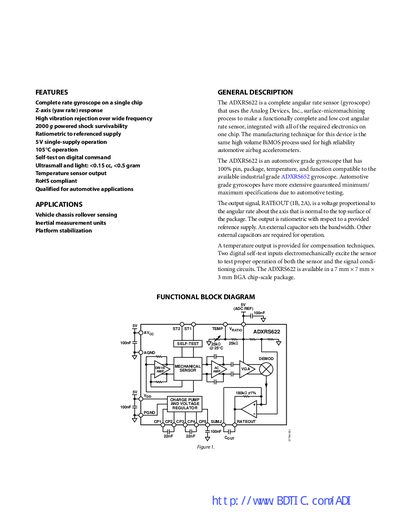

The ADXRS622 is a complete angular‑rate sensor built on Analog Devices' surface‑micromachining process. It provides a ratiometric voltage output for Z‑axis (yaw) rate, a temperature‑compensated signal, and self‑test functions. The device is offered in a 7 mm × 7 mm × 3 mm BGA package and is qualified for automotive applications.
Key features include 5 V single‑supply operation, operation from –40 °C to +105 °C, 2000 g shock survivability, and a bandwidth up to 2500 Hz. The datasheet contains full electrical specifications, pin descriptions, absolute maximum ratings, and typical performance curves.
| Sensitivity (typical) | 7.0 mV/°/sec |
|---|---|
| Temperature Drift | 42 % |
| Null Voltage (typical) | 2.5 V |
| Bandwidth | 0.01 – 2500 Hz |
| Operating Voltage | 4.75 – 5.25 V |
| Quiescent Supply Current | 45 mA |
| Shock Survivability (powered) | 2000 g |
| Shock Survivability (unpowered) | 2000 g |
| Operating Temperature Range | -55 °C to +125 °C |
The ADXRS622 operates from 4.75 V to 5.25 V.
The device can survive up to 2000 g of shock both when powered and unpowered.
Yes, the ADXRS622 is qualified for automotive applications.
It operates from –40 °C to +105 °C, with an extended rating of –55 °C to +125 °C for the device.
