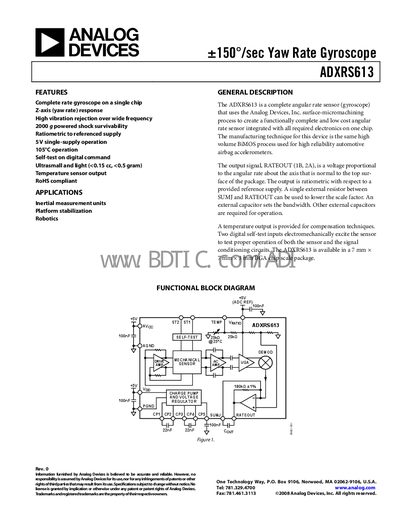

The ADXRS613 is a complete angular rate sensor (gyroscope) that uses the Analog Devices, Inc. surface-micromachining process to create a functionally complete and low cost angular rate sensor integrated with all required electronics on one chip. This device uses the same high volume BiMOS process used for high reliability automotive applications.
The ADXRS613 is a complete angular‑rate sensor that measures yaw rate about the Z‑axis. It is fabricated with Analog Devices' surface‑micromachining process and packaged in a 32‑lead ceramic ball‑grid array. The device operates from a single 5 V supply, provides a ratiometric voltage output proportional to angular rate, and includes a temperature‑compensated output.
The handbook provides functional block diagrams, pin descriptions, absolute‑maximum ratings, self‑test procedures, and extensive performance curves such as sensitivity, noise density, and shock response. Ordering information for the ADXRS613BBGZ and ADXRS613BBGZ‑RL variants is also included.
| Typical Sensitivity | 12.5 mV/°/sec |
|---|---|
| Operating Temperature Range | ‑40°C to +105°C |
| Operating Voltage (Vs) | 5.00 V (typ) |
| Supply Current | 5.0 mA (typ) |
| Bandwidth | 80 Hz (typ) |
| Rate Noise Density | 0.04 °/sec/√Hz |
| Unpowered Acceleration Rating | 2000 g |
| Temperature Drift | +3 % |
| Input Impedance | 50 kΩ |
The device operates from 4.75 V to 5.25 V, with a typical voltage of 5.00 V.
It can survive up to 2000 g of unpowered acceleration.
Typical sensitivity is 12.5 mV per degree per second.
It operates from –40 °C up to +105 °C.
