The ADXRS610 is a complete angular rate sensor (gyroscope) that uses the Analog Devices, Inc. surface-micromachining process to create a functionally complete and low-cost angular rate sensor integrated with all required electronics on one chip. It features high vibration rejection, high temperature operation, and self-test capability.
The ADXRS610 is a complete angular‑rate sensor that measures yaw rate about the Z‑axis. It is fabricated with Analog Devices' surface‑micromachining process and packaged in a 7 mm × 7 mm × 3 mm BGA ceramic package. The device operates from a single 5 V supply, offers a temperature‑compensated output, and includes digital self‑test inputs.

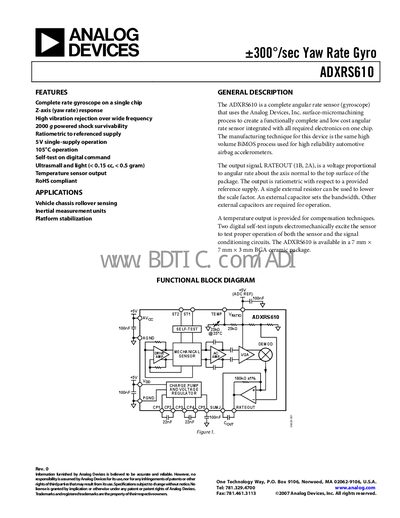

The datasheet provides full specifications, including sensitivity, measurement range, absolute maximum ratings, pin configuration, typical performance curves, and ordering information. Graphs illustrate noise density, temperature drift, shock response, and other key characteristics for system designers.
| Operating Voltage | 4.75 V – 5.25 V |
|---|---|
| Quiescent Supply Current | 3.5 mA – 45 mA |
| Absolute Maximum Shock (powered) | 2000 g |
It operates from a single 5 V supply, with an acceptable range of 4.75 V to 5.25 V.
The powered device can survive shocks up to 2000 g.
