The ADIS16006 is a low cost, low power, complete dual-axis accelerometer with an integrated serial peripheral interface (SPI). An integrated temperature sensor is also available on the SPI interface. The ADIS16006 measures acceleration with a full range voltage bias voltage and bandwidth, providing high accuracy for single-axis and dual-axis acceleration measurements.
The ADIS16006 is a low‑cost, low‑power dual‑axis accelerometer that provides SPI digital output and includes an integrated temperature sensor. It operates from a single 3.0 V to 5.25 V supply and offers a measurement range of ±5 g with selectable bandwidth.

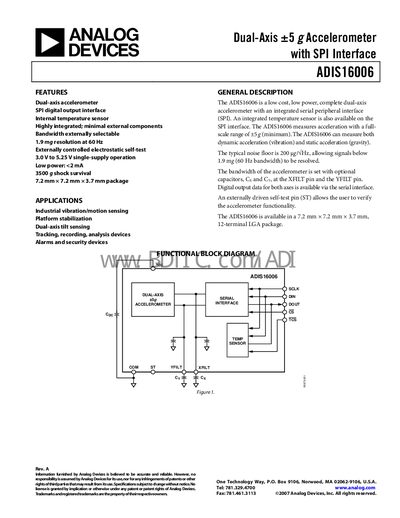

The document contains full specifications, pin descriptions, timing diagrams, absolute maximum ratings, typical performance curves, and ordering information for the 12‑terminal LGA package.
| Measurement Range | +5 g |
|---|---|
| Sensitivity (typical) | 242‑272 LSB/g |
| Noise Density | 200 µg/√Hz |
| Operating Voltage Range | 3.0 V to 5.25 V |
| Quiescent Supply Current | 1.5‑1.9 mA |
| Power‑Down Current | 1.0 mA |
| Maximum Shock Survival | 3500 g |
| Package Dimensions | 7.2 mm × 7.2 mm × 3.7 mm |
The ADIS16006 measures acceleration with a full‑scale range of ±5 g.
It operates from a single supply voltage between 3.0 V and 5.25 V.
The noise density is 200 µg/√Hz at 25 °C.
