ADIS16060 is a wide bandwidth yaw rate gyroscope for platform stabilization, image stabilization, guidance and control, inertial measurement units, and robotics.
The ADIS16060 yaw‑rate gyroscope from Analog Devices provides a digital SPI output, an internal temperature sensor and two auxiliary 14‑bit ADC inputs. It operates from a single 5 V supply, offers selectable bandwidth up to 1 kHz, and can be configured for a dynamic range of up to ±80°/sec.

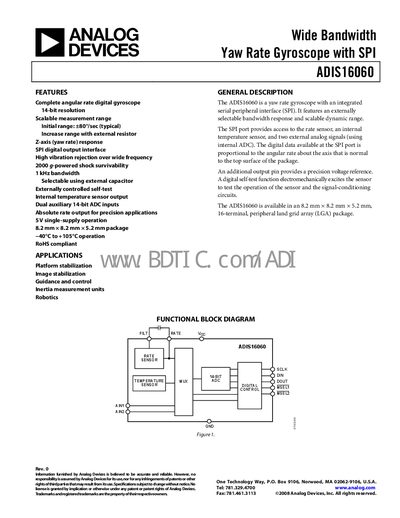

The datasheet includes full specifications, pin‑out diagrams, timing diagrams, absolute maximum ratings, and guidelines for bandwidth setting, range scaling, and self‑test procedures. Mechanical dimensions, ordering information and typical performance graphs are also provided.
| Supply Voltage | 5 V single‑supply |
|---|---|
| Dynamic Range | ±80°/sec (typical) |
| Package Dimensions | 8.2 mm × 8.2 mm × 5.2 mm |
| Operating Temperature Range | -40°C to +105°C |
| Throughput Rate | 100 kSPS |
| Quiescent Supply Current | 43‑65 mA (5 V, 50 kSPS) |
| Shock Survivability | 2000 g |
It operates from a single 5 V supply.
By adding an external resistor between the RATE and FILT pins, the range can be scaled up.
The device can survive shocks up to 2000 g.
The serial clock frequency can be up to 2.9 MHz.
