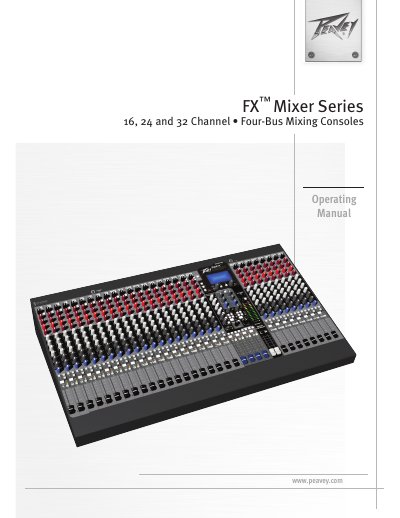

This document is the operating manual for the Peavey FX™ Mixer Series 16, 24, and 32 Channel Four-Bus Mixing Consoles. The product is a four-bus mixing console with a built-in electric shock prevention feature. It provides important operating and maintenance instructions. Users are cautioned to avoid electrical shock and fire hazards, and to keep the apparatus away from rain or moisture.
This manual begins with extensive safety warnings, including cautions about dangerous voltage, proper grounding, and protection from moisture and high sound levels. It also outlines installation requirements and the need for qualified service personnel.
The remainder of the guide describes the mixers' features and controls: XLR mic inputs, stereo channels, monitor and effects sends, low‑cut filter, EQ sections, phantom power, USB connectivity, and optional BNC lamp jacks. Detailed explanations of gain, low‑cut, hi‑EQ, mid‑EQ, and low‑EQ controls help users achieve optimal sound quality.
| XLR mic inputs (16FX) | 12 |
|---|---|
| XLR mic inputs (24FX) | 20 |
| XLR mic inputs (32FX) | 28 |
| Stereo channels | Two |
| Monitor sends per channel | Four (pre‑fader) |
| Effects sends per channel | Two (post‑fader) |
| Low‑cut filter frequency | 75 Hz |
| Phantom power | 48 V switch |
| USB ports | Dual |
| Optional lamp jacks (24FX/32FX) | Two 12 V BNC |
The 24FX provides 20 XLR mic inputs.
The low‑cut filter is set to a corner frequency of 75 Hz.
Each channel has four pre‑fader monitor sends.
