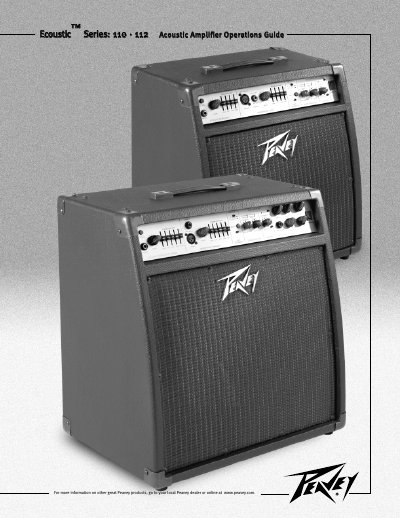

This manual covers safety warnings, proper installation, and operating instructions for the Peavey Ecoustic 110 and 112 acoustic amplifiers. It explains the front‑panel controls, power switch, volume and EQ settings, built‑in effects, and how to use the optional footswitch.
Technical specifications, wiring diagrams, and warranty terms are listed toward the end of the document. The manual also includes recommended grounding practices and service information for qualified technicians.
| Speaker (Ecoustic 112) | 12" Blue Marvel® Coaxial Speaker |
|---|---|
| Speaker (Ecoustic 110) | 10" Blue Marvel® Coaxial Speaker |
| Power Output (Ecoustic 112) | 100 W lows/mids, 25 W highs |
| Power Output (Ecoustic 110) | 30 W lows/mids, 10 W highs |
| Dimensions | 17.00" W × 18.00" H × 12.50" D |
| Weight | 37.5 lb (17 kg) |
| THD (Woofer) | 0.2 % @ 200 Hz |
| THD (Tweeter) | 0.5 % @ 10 kHz |
| Input Impedance (Amp Input) | High‑Z 50 kΩ |
| Output Load Impedance | ≥ 1 kΩ |
Press and hold both the EFX ADJUST and REV/DLY controls while turning the amp on.
Connect the 8‑pin DIN connector on the rear panel to the Ecoustic PFC 3 footswitch before powering up the amp.
