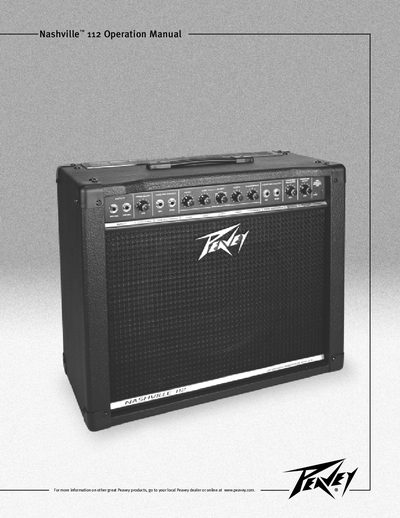

Describes the operation and maintenance of the Nashville™ 112 speaker
This manual begins with extensive safety warnings, advising users not to open the unit, keep it dry, and follow proper grounding procedures. It also outlines basic installation cautions, such as using a polarized or grounding plug and protecting the power cord.
The remainder of the guide details the front‑panel controls, input and output jacks, EQ sections, reverb and presence controls, and power specifications. Quick‑start steps walk the user through connecting power, plugging a guitar, and adjusting gain, master, and tone settings. Technical specifications for power output, frequency response, distortion, and input impedances are listed, followed by warranty information.
| Power Output | 80 Watts RMS into 4 Ω |
|---|---|
| Frequency Response | +0 / –3 dB, 20 Hz – 20 kHz |
| Total Harmonic Distortion (THD) | Below 0.8 % THD for 6 dB overload |
| High‑Gain Input Impedance | 220 kΩ |
| Low‑Gain Input Impedance | 68 kΩ |
Plug a stereo headphone into the headphone jack; the internal speaker is automatically disengaged.
