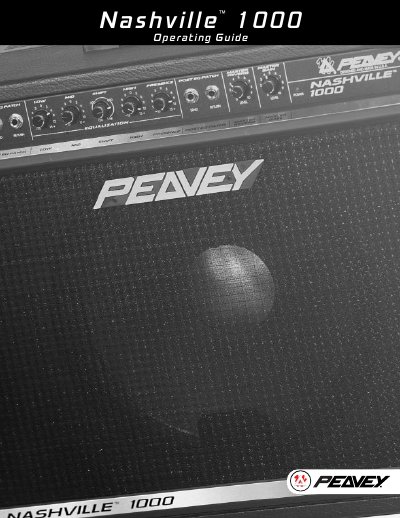

The document is an operating guide for the Nashville 1000. It is intended to alert the user to the presence of uninsulated 'dangerous voltage' within the product's enclosure that may pose a risk of electric shock. The document also includes important operating and maintenance instructions. It warns against opening the product and advises to refer servicing to qualified personnel. Additionally, it cautions not to expose the appliance to rain or moisture.
The Nashville 1000 User Manual provides essential safety information, quick‑start setup, and detailed descriptions of front‑panel and rear‑panel controls for the Peavey steel‑guitar amplifier. It includes warnings about dangerous voltage, instructions for connecting power, guitars, footswitches, and external effects, as well as recommended tone settings.
Technical specifications, a block diagram, dimensions, weight, and warranty details are also included, giving users and service technicians a complete reference for installation, operation, and maintenance of the amplifier.
| Rated Power (4 Ω) | 300 W RMS (with DDT compression) |
|---|---|
| Rated Power (8 Ω) | 190 W RMS (with DDT compression) |
| Frequency Response | +0,‑3 dB, 20 Hz – 20 kHz @ 250 W RMS into 4 Ω |
| Total Harmonic Distortion | < 0.3 % (1 W – 300 W RMS, 20 Hz – 20 kHz, 4 Ω) |
| Power Consumption | 360 W, 50/60 Hz, 120 VAC |
| Dimensions | 20.5" × 26.5" × 11.375" (52.07 cm × 67.31 cm × 28.90 cm) |
| Weight | 57.1 lb (25.90 kg) |
Plug the footswitch into the Remote Switch jack on the rear of the unit and ensure the plug is fully inserted.
Set the Master Gain higher than the Pre Gain to avoid premature signal clipping.
