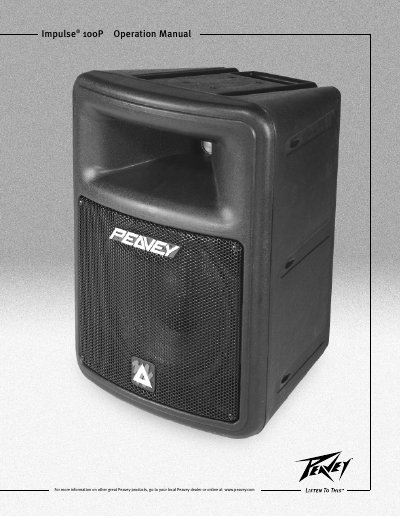

This is an operation manual for impulse 100p
This manual begins with extensive safety warnings, including shock‑hazard symbols, proper handling of the power cord, and the requirement that all servicing be performed by qualified personnel. It also describes power‑up procedures, fuse replacement, and the built‑in LED indicators that show power and DDT compression status.
The guide then covers the speaker’s audio connections: balanced 1/4" TRS and XLR inputs, loop‑out/loop‑in jacks for daisy‑chaining multiple units, and volume‑control settings. Detailed mounting instructions explain torque specifications, maximum hanging angle, and the need for a certified structural engineer when suspending the cabinet. Troubleshooting tips address no‑output conditions, hum problems, and thermal protection.
| Peak power (woofer) | 200 W |
|---|---|
| Peak power (tweeter) | 70 W |
| Woofer size | 10" |
| Compression driver | 1.4" titanium |
| Mounting bolt torque | 3–3.5 ft‑lb |
Unplug the unit, set the power switch to OFF, then replace the blown fuse with a fast‑blow 5 A 250 V AC rated fuse, making sure it is fully seated before turning the unit back on.
The Impulse 100P ships with an 8‑foot IEC power cord. If an extension cord is needed, use one that is no longer than necessary and rated for the required current; never remove the third‑wire ground plug.
Consult a certified structural engineer, use a 1/4" × 20 bolt tightened to 3–3.5 ft‑lb, keep the mounting angle within 30°, and secure the cabinet with a safety chain or wire rope.
