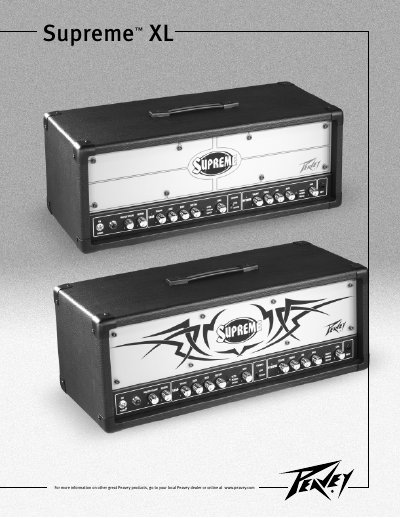

Supreme XL Warning Mark
This manual covers safe operation of the Peavey Supreme XL guitar amplifier, including warnings about electric shock, proper ventilation and the need for qualified service personnel. It explains how to connect power, speakers, footswitches and external effects, and describes each control on the front and rear panels.
Detailed sections describe the power‑output selector (25 W, 50 W, 100 W), master volume, EQ controls for Rhythm and Lead channels, reverb, effects loop, speaker impedance requirements and the included 2‑button footswitch. Technical specifications such as output power, dimensions, weight and input/output levels are listed, followed by warranty information.
| Maximum Power into 8 Ω | 100 W RMS |
|---|---|
| Minimum Speaker Impedance | 8 Ω |
| Lead Channel Nominal Input Level | -70 dB (0.3 mV RMS) |
| Effects Loop Output Level (UP) | -1.4 dBV (850 mV RMS) |
The amplifier requires speakers with an impedance of at least 8 Ω.
