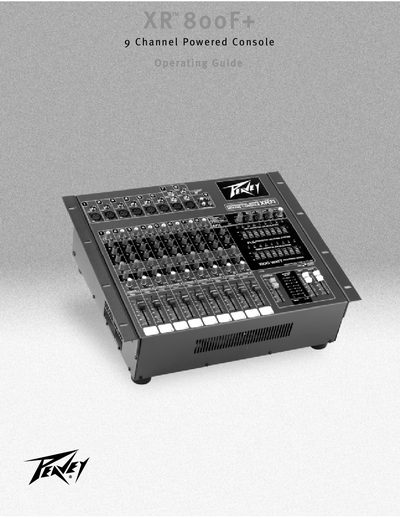

Peavey XR800F+ Powered Sound Reinforcement Mixing Console Operating Guide

This guide introduces the operation and maintenance instructions for the XR 800F+ 9-channel powered console.

Brand: Peavey
Category: Audio Power Amplifier
Document type: User Manual
Language: English
Pages: 48
File format: PDF
File size: 4 MB
Published: 26 March, 2012
Updated: 01 October, 2023
Model: XR 800F
MD5 checksum: A04B98344A308CF7C692940C81FAA2AB
PDF: Peavey XR800F+ Powered Sound Reinforcement Mixing Console Operating Guide PDF

About this manual

Congratulations on your purchase of the XR800F+ powered mixer. This 9‑channel tabletop console combines low‑noise mic preamps, line inputs, graphic EQs, and a built‑in 2 × 500 W power amplifier for sound‑reinforcement applications.

The guide covers safety instructions, AC power connections, master and channel functions, wiring options, specifications, and troubleshooting. It explains how to connect speakers, use the internal DSP effects, enable phantom power, and configure the system mode for stereo or dual‑mono operation.

What's inside

Safety Instructions
AC Power Section
Power Amplifier Section
Master In/Out
Master Functions
Channel Functions
Specifications
Phantom Power

Specifications

Low‑Z Mic Input Impedance	2.2 kΩ
Internal Power Amplifier Output	2 × 500 W
Main L/R Output Minimum Load	600 Ω
Mic Input Gain Range	10 dB to 48 dB
Phantom Power Voltage	48 V

Frequently asked questions

How much power does the internal amplifier provide?

The console contains a built‑in 2 × 500 W power amplifier.

What is the recommended minimum speaker impedance?

Each internal amplifier can drive two 8 Ω cabinets in parallel, giving a combined minimum load of 4 Ω.
