The ADIS16003 is a dual-axis accelerometer with a ±1.7g measurement range and SPI interface. This product features an integrated temperature sensor, high integration, externally selectable bandwidth, low power consumption, etc. It is suitable for applications such as industrial vibration/motion sensing, platform stabilization, dual-axis tilt sensing, tracking, recording, and analysis devices, as well as alarms and security devices.
The ADIS16003 is a dual‑axis accelerometer that measures both dynamic vibration and static tilt. It features an SPI digital output, an internal temperature sensor, and operates from a single 3.0 V to 5.25 V supply while consuming less than 2 mA.

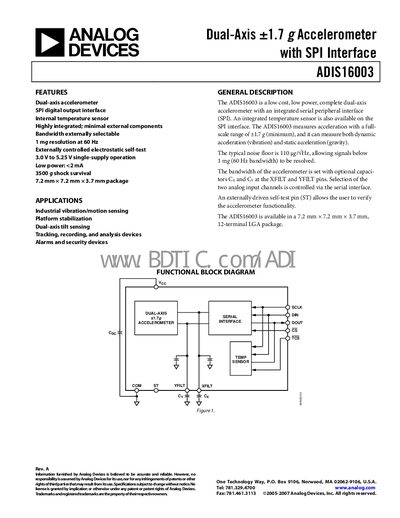

The datasheet provides detailed specifications such as a measurement range of +17 g, noise density of 110 µg/√Hz, and a 3500 g shock rating, together with pin configurations, timing diagrams, and ordering information for the 12‑terminal LGA package.
| Measurement Range | +17 g |
|---|---|
| Nonlinearity | +0.5 % to +2.5 % |
| Sensitivity (typical) | 820 LSB/g |
| Noise Density (25 °C) | 110 µg/√Hz rms |
| Operating Voltage Range | 3.0 V to 5.25 V |
| Quiescent Supply Current | 1.5 mA to 2.0 mA |
| Package Dimensions | 7.2 mm × 7.2 mm × 3.7 mm |
| Shock Survival | 3500 g |
The device operates from 3.0 V to 5.25 V.
The noise density is 110 µg/√Hz rms.
It uses a 12‑terminal LGA package.
The device can survive shocks up to 3500 g.
