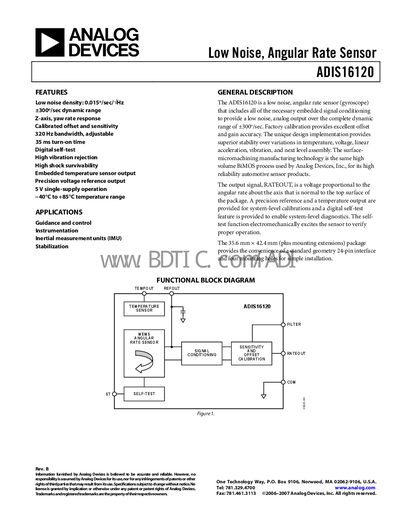

ADIS16120 is a low noise, angular rate sensor (gyroscope) that includes features such as low noise density, wide dynamic range, calibrated offset and sensitivity, high vibration rejection, and shock survivability.
The ADIS16120 angular rate sensor provides a low‑noise analog output over a full‑scale range of ±300°/sec. It includes factory‑calibrated offset and sensitivity, an embedded temperature sensor, and a precision voltage reference, all powered from a single 5 V supply.
The device operates from –40 °C to +85 °C, supports a 320 Hz bandwidth, and offers a self‑test function for diagnostics. Its 24‑lead PCB module package includes pin‑out details, absolute maximum ratings, and thermal characteristics for system integration.
| Sensitivity (Initial) | 4.95‑5.05 mV/°/sec |
|---|---|
| Noise Density | 0.015 °/sec/VHz |
| Bandwidth (3 dB) | 320 Hz |
| Operating Voltage Range | 4.75 V – 5.25 V |
| Maximum Acceleration (any axis, powered) | 2000 g |
It operates from a single 5 V supply with an acceptable range of 4.75 V to 5.25 V.
Bandwidth can be reduced by adding a capacitor between the RATEOUT and FILTER pins; standard capacitor values and resulting bandwidths are listed in Table 5.
