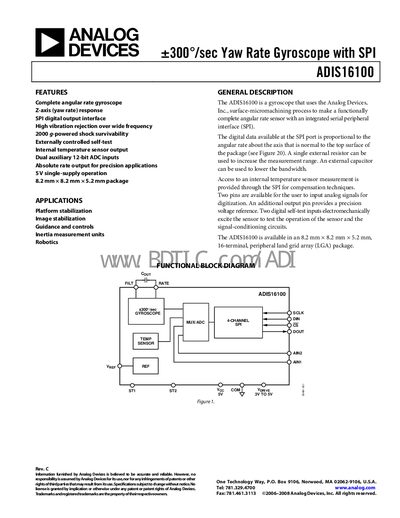

The ADIS16100 is an absolute angular rate sensor for precision applications that features a SPI digital output interface. This sensor uses Analog Devices' surface micromachining process to create a fully featured angular rate sensor with an integrated serial peripheral interface (SPI). The digital data available at the SPI port is proportional to the angular velocity.
The ADIS16100 is a surface‑micromachined yaw‑rate gyroscope offering a full‑scale range of ±300°/sec, SPI digital output, and a 5 V single‑supply operation. It includes an internal temperature sensor, dual 12‑bit auxiliary ADC inputs, and self‑test capabilities for precision applications.
The datasheet provides electrical characteristics such as a 40 Hz user‑selectable bandwidth, 1 MSPS throughput, 7‑9 mA supply current, and operation over –40 °C to +85 °C. Mechanical limits include 2000 g shock survivability and absolute maximum ratings for voltage and temperature.
| Supply Voltage | 4.75 V – 5.25 V |
|---|---|
| Operating Temperature | -40 °C to +85 °C |
| Shock Survivability | 2000 g |
| Throughput Rate | 1 MSPS |
The device can survive shocks up to 2000 g.
It operates from 4.75 V to 5.25 V.
The gyroscope works from –40 °C to +85 °C.
The conversion throughput is 1 MSPS with a conversion time of 800 ns.
