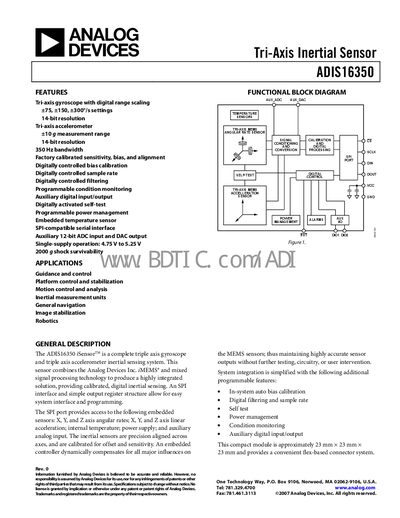

The Tri-Axis Inertial Sensor ADIS16350 Rev. 0 is a product manufactured by Analog Devices. It features a tri-axis gyroscope and tri-axis accelerometer. It offers digital range scaling, 14-bit resolution, factory calibrated sensitivity, bias, and alignment, as well as digital bias calibration, sample rate control, filtering, and condition monitoring. Additionally, it provides auxiliary digital input/output, digital self-test, programmable power management, and an embedded temperature sensor.
The ADIS16350 iSensor™ is a fully integrated triple‑axis gyroscope and accelerometer system from Analog Devices. It provides calibrated digital outputs for angular rate and linear acceleration, a built‑in temperature sensor, and programmable power‑management features, all accessed via an SPI‑compatible serial interface.
The document includes detailed specifications, pin configuration, timing diagrams, performance curves, and installation guidelines to help designers integrate the sensor into guidance, control, and motion‑analysis applications.
| Gyroscope sensitivity (±300°/s range) | 0.07326 °/s per LSB (typical) |
|---|---|
| Accelerometer sensitivity (±10 g range) | 2.522 mg per LSB (typical) |
| Operating voltage range | 4.75 V to 5.25 V |
| Power consumption (normal mode, 25°C) | 33 mA |
| Maximum shock survivability | 2000 g |
| Operating temperature range | -40°C to +85°C |
| ADC resolution | 12 bits |
| Gyroscope bandwidth (3 dB) | 350 Hz |
The sensor operates from 4.75 V to 5.25 V.
The device can survive shocks up to 2000 g.
The auxiliary ADC provides a 12‑bit resolution.
The gyroscope has a 3 dB bandwidth of 350 Hz.
