Quad Pin Timing Formatter ADATE207 is a 4-channel timing formatter from Analog Devices. It supports 256 waveforms per channel, 4 independent event edges per waveform, is STIL IEEE 1450-1999 compatible, has a 39.06ps timing resolution, and a 2.5ns minimum edge refire rate.
The ADATE207 is a quad‑pin timing formatter designed for automatic test equipment (ATE) and high‑speed digital instrumentation. It provides four independent channels with a 100 MHz base vector rate, 256 selectable waveforms per channel, and STIL‑compatible event formatting.

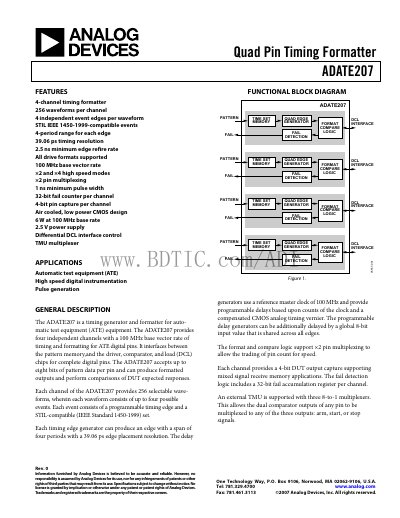

The handbook includes functional block diagrams, detailed specifications (DC, AC, timing), pin configurations, timing diagrams, absolute maximum ratings, thermal data, and recommended bypassing schemes, as well as an ordering guide and revision history.
| Timing resolution | 39.06 ps |
|---|---|
| Minimum pulse width | 1 ns |
| Power dissipation (base rate) | 6 W |
| Supply voltage | 2.5 V |
| Maximum clock frequency | 100 MHz |
| Pin capacitance | 3.5 pF |
| Differential input voltage (internal termination) | 200 mV |
| Clock jitter | 5 ps rms |
| Thermal resistance (BGA package) | 1.5 °C/W |
The device provides a timing resolution of 39.06 ps.
It can generate pulses as short as 1 ns.
The ADATE207 operates with a base vector rate of 100 MHz.
The device is powered from a 2.5 V supply.
