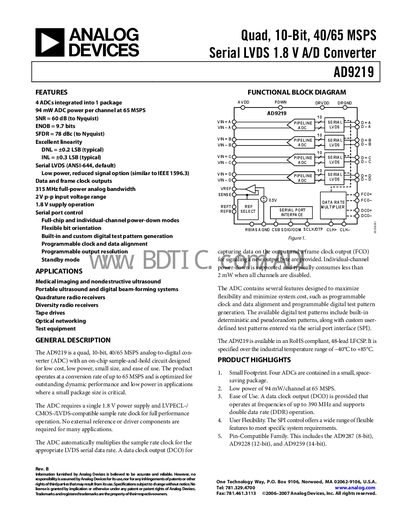

The AD9219 is a quad, 10-bit, 40/65 MSPS serial LVDS 1.8 V A/D converter from Analog Devices. It offers excellent linearity, low power consumption, and low distortion, and is widely used in medical imaging, nondestructive ultrasound, portable ultrasound, and digital beamforming systems.
The AD9219 is a quad, 10‑bit analog‑to‑digital converter designed for low‑cost, low‑power, and small‑size applications such as medical imaging, ultrasound, and high‑speed radio receivers. It operates from a single 1.8 V supply and provides LVDS, CMOS, or LVPECL‑compatible serial data output with a data clock up to 390 MHz.
Key features include four integrated ADCs in a 48‑lead LFCSP package, 94 mW per channel at 65 MSPS, programmable clock and data alignment, and built‑in digital test‑pattern generation. Detailed specifications cover resolution, SNR, ENOB, power dissipation, and timing parameters.
| Resolution | 10 bits |
|---|---|
| Signal‑to‑Noise Ratio (SNR) | 60 dB (to Nyquist) |
| Effective Number of Bits (ENOB) | 9.7 bits |
| Power Consumption per Channel | 94 mW @ 65 MSPS |
| Analog Bandwidth (Full Power) | 315 MHz |
| Supply Voltage (AVDD/DRVDD) | 1.8 V |
| Maximum Sampling Rate | 65 MSPS |
The AD9219 operates from a single 1.8 V supply (AVDD = 1.8 V, DRVDD = 1.8 V).
Each channel consumes about 94 mW when running at 65 MSPS.
The device can sample up to 65 MSPS.
The analog bandwidth is 315 MHz.
