The AD9601 is a 10-bit, 200 MSPS/250 MSPS, 1.8 V analog-to-digital converter from Analog Devices. It features excellent linearity, low power consumption, and a programmable input voltage range. It is suitable for use in wireless and wired communication applications.

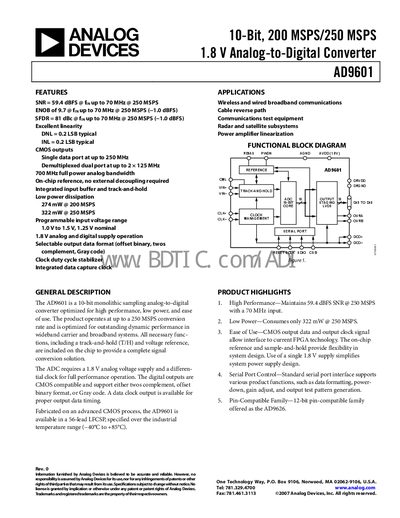

The AD9601 is a 10‑bit monolithic sampling ADC optimized for high performance, low power, and ease of use. It operates up to 250 MSPS and includes on‑chip reference, track‑and‑hold, and CMOS compatible digital outputs. The device is supplied by a single 1.8 V rail and is available in a 56‑lead LFCSP package.
Key features include 59.4 dBFS SNR at 250 MSPS, 9.7 ENOB, programmable input range, and a serial port for configuration. The datasheet provides detailed specifications, timing diagrams, absolute maximum ratings, and ordering information.
| Resolution | 10 bits |
|---|---|
| Signal‑to‑Noise Ratio (SNR) | 59.4 dBFS @ 250 MSPS |
| Effective Number of Bits (ENOB) | 9.7 bits @ 250 MSPS |
| Maximum Conversion Rate | 250 MSPS |
| Supply Voltage | 1.8 V (AVDD and DRVDD) |
| Package | 56‑Lead LFCSP (CP‑56‑2) |
| Operating Temperature Range | -40 °C to +85 °C |
The AD9601 can sample up to 250 MSPS.
It requires a 1.8 V analog and digital supply (AVDD and DRVDD).
