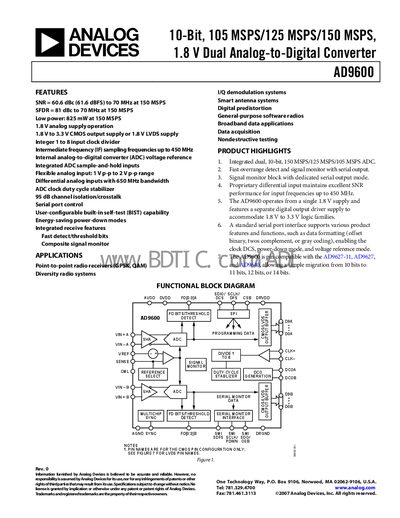

The AD9600 is a 10-bit, 105 MSPS/125 MSPS/150 MSPS, 1.8 V dual analog-to-digital converter (ADC) that features low power consumption, a flexible analog input, a high bandwidth differential analog input, an ADC voltage reference, ADC sample-and-hold inputs, on-board self-test capability, fast detect/threshold bits, and a composite signal monitor.
The AD9600 is a dual, 10‑bit analog‑to‑digital converter designed for communications applications that need low cost, small size, and high versatility. It features a multistage differential pipeline architecture, integrated voltage reference, and a duty‑cycle stabilizer to maintain performance across clock variations. The device supports fast over‑range detection, programmable threshold detection, and a signal‑monitor block for AGC functions.
Key specifications include up to 150 MSPS conversion rate, 60.6 dB SNR at 150 MSPS, 825 mW power consumption at full speed, and flexible output options (1.8‑3.3 V CMOS or 1.8 V LVDS). The ADC operates from a single 1.8 V supply and provides a 650 MHz analog input bandwidth with a 2 Vp‑p input span.
| Resolution | 10 bits |
|---|---|
| Signal‑to‑Noise Ratio (150 MSPS) | 60.6 dB |
The SNR is 60.6 dB at 150 MSPS.
