The AD8013 is a low power, single supply, triple video amplifier. Each of the three amplifiers has 30 mA of output current, and is optimized for driving one back terminated video load. The product operates on a single +5 V to +13 V power supply and features a high speed 140 MHz unity gain bandwidth, fast settling time of 18 ns, and high speed disable function. It is also easy to use.
The AD8013 is a low‑power, single‑supply, triple video amplifier from Analog Devices. Each of the three amplifiers delivers up to 30 mA output current and is optimized for driving a 150 Ω terminated video load. The device offers a 0.1 dB gain flatness to 60 MHz, 140 MHz unity‑gain bandwidth, 1000 V/µs slew rate and a high‑speed disable function per channel.

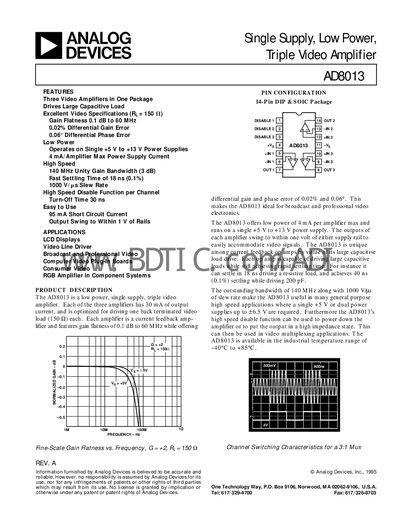

The datasheet provides detailed electrical characteristics, pin configuration for 14‑pin DIP and SOIC packages, dynamic performance tables, power‑supply specifications, and mechanical dimensions. It also includes application notes such as 3:1 and 2:1 video multiplexing circuits and guidance on disable‑pin operation.
| Unity‑Gain Bandwidth | 140 MHz |
|---|---|
| Slew Rate | 1000 V/µs |
| Quiescent Current per Amplifier | 4 mA (max) |
| Short‑Circuit Current | 95 mA |
| Output Swing | Within 1 V of supply rails |
| Maximum Capacitive Load | 1000 pF |
The device has a unity‑gain bandwidth of 140 MHz.
Each amplifier can source up to 95 mA in a short‑circuit condition.
The quiescent current per amplifier is about 4 mA at maximum.
