AD829 is a high speed, low noise video operational amplifier.
The AD829 video op‑amp is designed for high‑speed, low‑noise video applications. It offers a 120 MHz bandwidth, 230 V/µs slew rate, 90 ns settling time to 0.1 %, and excellent DC precision with a 1 mV maximum input offset voltage.

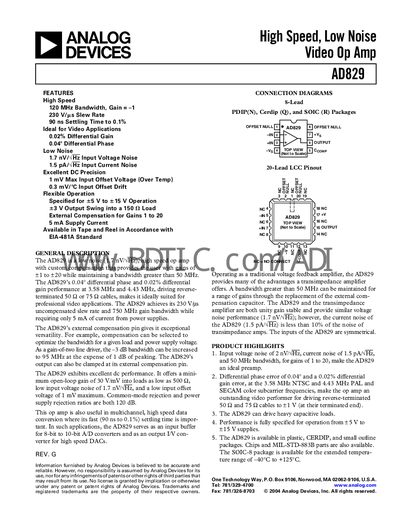

The device operates from +5 V to +15 V, draws only 5 mA quiescent current, and is available in PDIP, CERDIP, SOIC and LCC packages. Detailed specifications, absolute maximum ratings, ordering information, and typical performance graphs are provided in the datasheet.
| Bandwidth | 120 MHz |
|---|---|
| Slew Rate | 230 V/µs |
| Settling Time (0.1 %) | 90 ns |
| Input Voltage Noise | 1.7 nV/√Hz |
| Input Current Noise | 1.5 pA/√Hz |
| Supply Voltage Range | +5 V to +15 V |
| Quiescent Current | 5 mA |
| Differential Gain Error | 0.02 % |
| Differential Phase Error | 0.04° |
The AD829 provides a 120 MHz bandwidth (gain = –1) and a gain‑bandwidth product of up to 750 MHz at +15 V.
It operates from +5 V to +15 V.
The input voltage noise is 1.7 nV/√Hz.
The device draws about 5 mA of supply current.
