The AD8016 is a low power, high output current xDSL line driver that features full ADSL CO (Central Office) performance on -12V supplies.
The AD8016 is a low‑power, high‑output‑current xDSL line driver designed for central‑office applications such as ADSL, HDSL2, and VDSL. It operates from a +12 V supply and delivers up to 20.4 dBm of output power while consuming only 1.5 W total power.

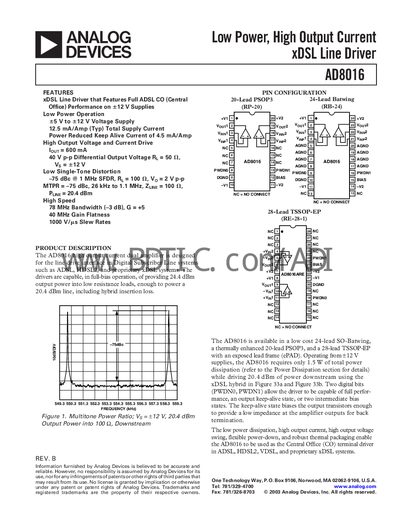

Key features include a 78 MHz -3 dB bandwidth, up to 2000 mA short‑circuit current, multiple package options (24‑lead SO‑Batwing, 20‑lead PSOP3, 28‑lead TSSOP‑EP), and a wide operating temperature range of -40 °C to +85 °C. The datasheet also contains pin configurations, absolute maximum ratings, and ordering details.
| Operating Supply Voltage | +3 V to +13 V |
|---|---|
| Total Power Dissipation | 1.5 W |
| Operating Temperature Range | -40 °C to +85 °C |
| Available Packages | 24‑lead SO‑Batwing, 20‑lead PSOP3, 28‑lead TSSOP‑EP |
The AD8016 operates from +3 V up to +13 V.
It is offered in 24‑lead SO‑Batwing, 20‑lead PSOP3, and 28‑lead TSSOP‑EP packages.
