AD8061/AD8062/AD8063 are low cost 300MHz rail-to-rail amplifiers with low offset voltage, high speed, low power consumption.
The AD8061/AD8062/AD8063 family provides rail‑to‑rail output voltage‑feedback amplifiers that combine low cost with high‑speed performance. They operate from a single supply as low as 2.7 V and feature bandwidths up to 300 MHz, slew rates up to 650 V/ps, and low quiescent current.

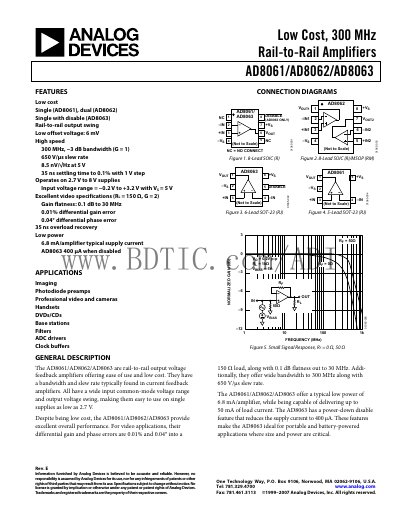

The datasheet includes detailed specifications, absolute maximum ratings, typical performance curves, layout recommendations, and an ordering guide for the various SOIC, MSOP, and SOT‑23 package options.
| Small‑signal bandwidth (G=1) | typical 320 MHz |
|---|---|
| Settling Time to 0.1 % (G=2, Vo=2 V step) | 35 ns |
| Input Offset Voltage | typical 6 mV |
| Quiescent Current per Amplifier | typical 6.8 mA |
| Supply Current when Disabled (AD8063 only) | 0.4 mA |
The AD8063 typically provides a small‑signal bandwidth of 320 MHz (‑3 dB, G=1).
When disabled, the AD8063 draws about 0.4 mA of supply current.
The input offset voltage is typically 6 mV.
