The AD8024 is a low settling time, high-speed, high output voltage quad current feedback operational amplifier. Manufactured on ADI's proprietary XFHV high-speed bipolar process, the AD8024 is capable of driving to within 1.3 V of its 24 V supply rail. Each amplifier has high-output current capability and can drive high capacitive loads. The AD8024 outputs settle to 0.1% within 35 ns into a 300 pF load (6 V swing). The AD8024 can run on both 5 V as well as ± 12 V rails. Slew rate on ±12 V supplies is 2400 V/µs. DC Characteristics are outstanding with typical 2 mV offset, and 3 µA maximum input bias current. High-speed disable pin allows the AD8024 to be shut down when not in use. Low-power operation is assured with the 4 mA/Amplifier
The AD8024 is a quad high‑speed current‑feedback operational amplifier offering a 350 MHz bandwidth, 2400 V/µs slew rate, and the ability to drive high capacitive loads. It operates from a single 5 V to 24 V supply (or dual ±2.5 V to ±12 V) and includes a disable pin for low‑power shutdown. Typical applications include LCD column drivers, video line drivers, and high‑performance test equipment.

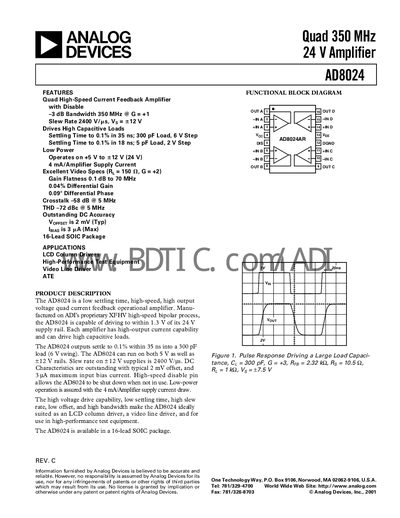

The datasheet provides detailed electrical specifications, typical performance graphs, package dimensions, and ordering information for the 16‑lead narrow‑body SOIC (R‑16A) version. It also includes safety notes such as ESD sensitivity and recommended operating conditions.
| Bandwidth (3 dB) | 160‑200 MHz |
|---|---|
| Slew Rate | 370‑390 V/µs |
| Supply Voltage Range (single supply) | 5 V – 24 V |
| Total Quiescent Current | 16‑17 mA |
| Maximum Dynamic Output Current | 300 mA |
| Input Offset Voltage | 2‑5 mV |
| Input Bias Current | 1.75 µA (typical) |
The AD8024 can operate from a single supply of 5 V to 24 V, or from dual supplies of ±2.5 V to ±12 V.
Each amplifier draws about 4 mA, giving a total quiescent current of 16‑17 mA for the quad.
The device is offered in a 16‑lead narrow‑body SOIC (R‑16A) package.
