The AD8017 is a low cost, dual high speed amplifier capable of driving low distortion signals to within 1.0 V of the supply rail. It is intended for use in single supply xDSL systems where low distortion and low cost are essential. The amplifiers will be able to drive a minimum of 200 mA of output current
The AD8017 is a low‑cost, dual high‑speed amplifier designed for single‑supply xDSL systems. It provides high output drive capability, low power consumption (7 mA per amplifier), and low distortion, making it suitable for ADSL, SDSL, VDSL and other proprietary xDSL equipment.

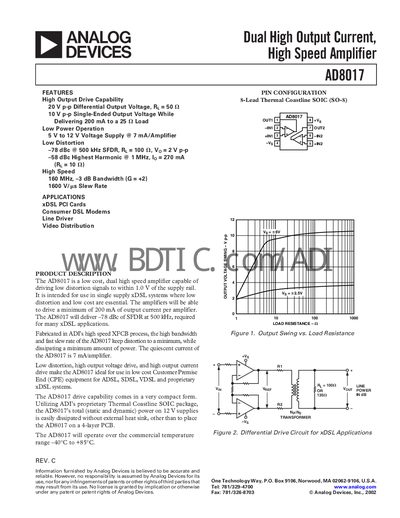

The datasheet lists detailed electrical specifications, absolute maximum ratings, package information (8‑lead SOIC), ordering options, and typical performance curves. It also includes mechanical dimensions and revision history for reference.
| -3 dB Bandwidth | 160 MHz |
|---|---|
| Slew Rate | 1600 V/µs |
| Supply Current | 7 mA per amplifier |
| Operating Temperature Range | -40 °C to +85 °C |
| Maximum Output Current | 200 mA |
| Package | 8‑Lead SOIC (Thermal Coastline) |
The AD8017 operates from a dual supply of +2.2 V to +6.0 V.
It can deliver a 20 V peak‑to‑peak differential output and a 10 V peak‑to‑peak single‑ended output.
The device is offered in an 8‑lead Thermal Coastline SOIC (SO‑8) package.
The SOIC package can dissipate up to 13 W of power.
