The AD8014 is a low power high performance amplifier with features such as low cost, high speed, low noise, and low distortion.
The AD8014 is a 400 MHz, low‑power, high‑performance current‑feedback operational amplifier. It offers a 1.15 mA quiescent current, 4000 V/µs slew rate, and very low noise (3.5 nV/√Hz voltage, 5 pA/√Hz current). The device operates from a 4.5 V to 12 V supply and provides up to 50 mA output current with low distortion.

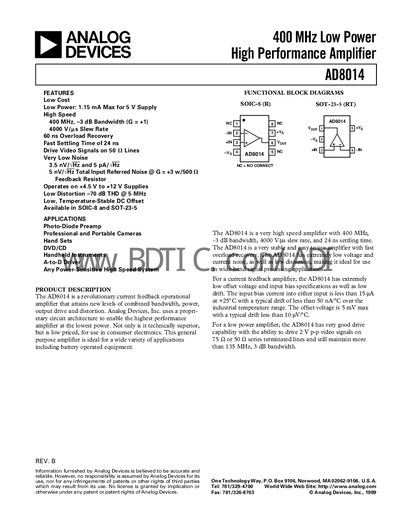

Typical applications include photodiode preamplifiers for CD/DVD drives, video drivers for series‑terminated cables, and other high‑speed consumer‑electronics circuits. The datasheet includes functional block diagrams, detailed electrical specifications, absolute maximum ratings, and mechanical dimensions.
| -3 dB Bandwidth (Small Signal) | 400 MHz (typical) |
|---|---|
| Quiescent Current | 1.15 mA (typical) |
| Input Voltage Noise (10 kHz) | 3.5 nV/√Hz |
| Input Bias Current | 15 pA (max) |
| Output Current | 50 mA (typical) |
| Operating Supply Range | 4.5 V to 12 V |
The AD8014 draws about 1.15 mA of quiescent current at a 5 V supply.
The input voltage noise is 3.5 nV/√Hz at 10 kHz.
It operates from 4.5 V up to 12 V supply voltage.
