The OP162/OP262/OP462 are 15 MHz rail-to-rail operational amplifiers from Analog Devices that feature wide bandwidth, low offset voltage, low noise, single-supply operation, rail-to-rail output swing, low TCVOS, high slew rate, no phase inversion, unity-gain stable, and are suitable for portable instrumentation, sampling ADC amplifiers, wireless LANs, etc.
The OP162 (single), OP262 (dual) and OP462 (quad) are 15 MHz rail‑to‑rail operational amplifiers offering ultra‑low offset voltage, low noise, and single‑supply operation from 2.7 V to 12 V. They are suited for portable instrumentation, sampling ADC drivers, wireless LANs, and other precision applications.

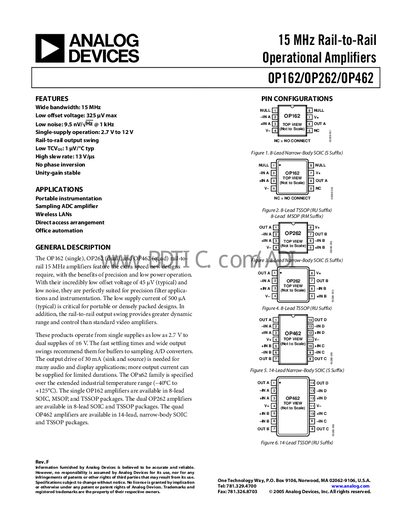

The document includes detailed electrical characteristics, absolute maximum ratings, typical performance curves, pin‑out diagrams for various package types, and an ordering guide that lists all available package options and temperature ranges.
| Gain Bandwidth Product | 15 MHz |
|---|---|
| Supply Voltage Range | 2.7 V to 12 V |
| Maximum Output Current | 30 mA |
| Input Offset Voltage (max) | 325 pV |
| Input Bias Current (typ) | 600 nA |
They operate from 2.7 V to 12 V on a single supply.
The devices can source or sink up to 30 mA continuously, with higher peaks for short durations.
The input offset voltage is as low as 325 pV max.
