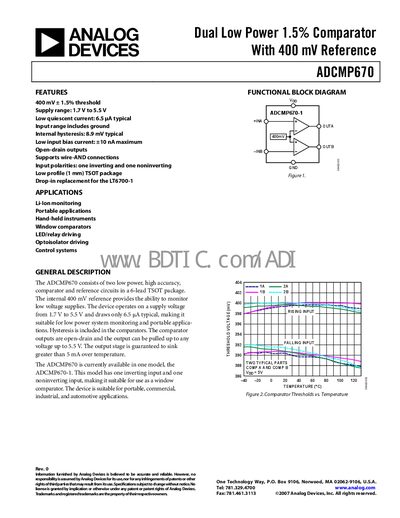

The ADCMP670 is a dual low power 1.5% comparator with a 400mV reference voltage. It features a 400mV ± 1.5% threshold, a supply range of 1.7V to 5.5V, low quiescent current, an input range that includes ground, open-drain outputs, and is suitable for applications such as Li-Ion monitoring, portable devices, handheld instruments, window comparators, LED/relay driving, optoisolator driving, and control systems.
The ADCMP670 combines two low‑power, high‑accuracy comparators and an internal 400 mV reference in a 6‑lead TSOT package. It is suited for Li‑ion monitoring, portable instruments, window‑comparator functions, LED/relay driving and other low‑voltage control applications.
Key specifications include a supply range of 1.7 V to 5.5 V, typical quiescent current of 6.5 µA, input bias current up to 10 nA, hysteresis around 8.9 mV, and open‑drain outputs capable of sinking >5 mA. The device operates from –40 °C to +125 °C and is supplied in a 1 mm low‑profile TSOT package.
| Supply voltage range | 1.7 V to 5.5 V |
|---|---|
| Quiescent current | 6.5 µA typical |
| Typical rising threshold voltage | 400 mV |
| Typical hysteresis | 8.9 mV |
| Maximum input bias current | 10 nA |
| Output low‑voltage (Vop=1.7 V) | 200 mV |
| Output leakage current | 0.8 µA |
| Propagation delay (high‑to‑low) | 10 ns typical |
| Operating temperature range | -40 °C to +125 °C |
It operates from 1.7 V up to 5.5 V.
The typical quiescent current is about 6.5 µA.
Typical hysteresis is 8.9 mV.
The input bias current is limited to 10 nA maximum.
