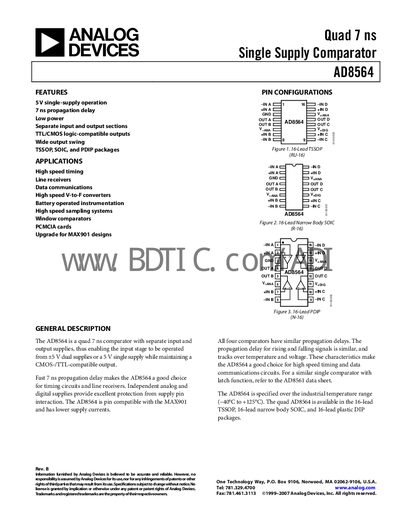

This document describes the features and characteristics of the Quad 7 ns Single Supply Comparator AD8564 Rev. B, including 5V single-supply operation, 7ns propagation delay, low power, separate input and output sections, TTL/CMOS logic-compatible outputs, etc.
The AD8564 is a quad comparator featuring a 7 ns propagation delay, 5 V single‑supply operation, low power consumption and TTL/CMOS‑compatible outputs. It is designed for high‑speed timing, line‑receiver, data‑communication and V‑to‑F conversion applications and is pin‑compatible with the MAX901.
The datasheet provides detailed electrical specifications, absolute maximum ratings, thermal resistance data, typical performance curves, outline dimensions and an ordering guide for the available TSSOP, SOIC and PDIP packages.
| Input Offset Voltage (typ) | 7 mV |
|---|---|
| Input Bias Current (typ) | 14 pA |
| Supply Voltage | 5.0 V single‑supply |
| Digital Supply Current (typ) | 6.0 mA |
| Operating Temperature Range | -40 °C to +125 °C |
| Package Options | TSSOP, SOIC, PDIP (16‑lead) |
It operates from a 5 V single‑supply voltage.
The AD8564 is offered in 16‑lead TSSOP, narrow‑body SOIC, and plastic DIP packages.
It is specified for –40 °C to +125 °C.
