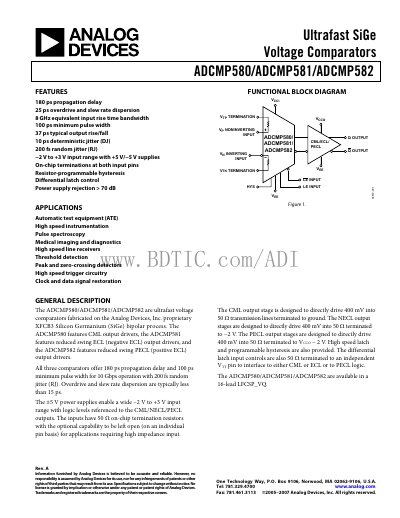

ADCMP580/ADCMP581/ADCMP582 are ultrafast SiGe voltage comparators from Analog Devices. These comparators offer 180ps propagation delay, 25ps overdrive and slew rate dispersion, 8GHz equivalent input rise time bandwidth, 100ps minimum pulse width, 37ps typical output rise/fall, 10ps deterministic jitter (DJ), 200fs random jitter (RJ), -2V to +3V input range with +5V/-5V supplies, on-chip terminations at both input pins, resistor-programmable hysteresis, differential latch control and >70dB power supply rejection. These comparators are suitable for automatic test equipment (ATE), high speed instrumentation, pulse spectroscopy, medical imaging and diagnostics, high speed line receivers, threshold detection, peak and zero-crossing detectors, high speed trigger circuitry and clock and data signal restoration applications.
The ADCMP580, ADCMP581 and ADCMP582 are ultrafast SiGe voltage comparators offering 180 ps propagation delay, 100 ps minimum pulse width and a wide –2 V to +3 V input range. They feature on‑chip terminations, programmable hysteresis, differential latch control and high power‑supply rejection, making them suitable for high‑speed instrumentation, ATE, medical imaging and clock/data signal restoration.
The document includes detailed specifications, timing diagrams, absolute maximum ratings, thermal considerations, pin‑out descriptions and typical performance curves. It also provides application notes, layout recommendations and ordering information for the 16‑lead LFCSP package.
| Propagation delay | 180 ps |
|---|---|
| Minimum pulse width | 100 ps |
| Input voltage range | -2 V to +3 V |
| Power supply rejection | > 70 dB |
| Hysteresis | 1 mV |
| Output impedance | 50 Ω |
| Operating temperature range | -40 °C to +125 °C |
The comparators have a propagation delay of 180 ps.
The minimum input pulse width is 100 ps.
