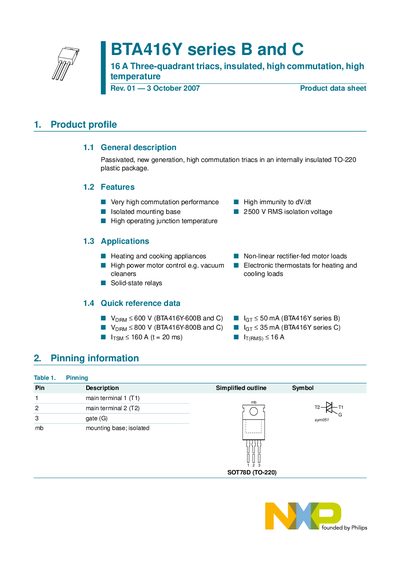

NXP BTA416Y series B C datasheet(1)

This document describes a new generation of high commutation triacs with internal insulation in a TO-220 plastic package. The features include high commutation performance, high immunity to dV/dt, isolated mounting base, 2500V RMS isolation voltage, and high operating junction temperature. It is suitable for heating and cooking appliances, non-linear rectifier-fed motor loads, high power motor control (such as vacuum cleaners), electronic thermostats for heating and cooling loads, solid-state relays, etc.

Brand
NXP
File format
PDF
Published
01 April, 2012
Updated
29 September, 2023
Model
BTA416Y
MD5 checksum
696D52E1C064903B02261DC33F7096AB
PDF
NXP BTA416Y series B C datasheet(1) PDF
Download PDF
