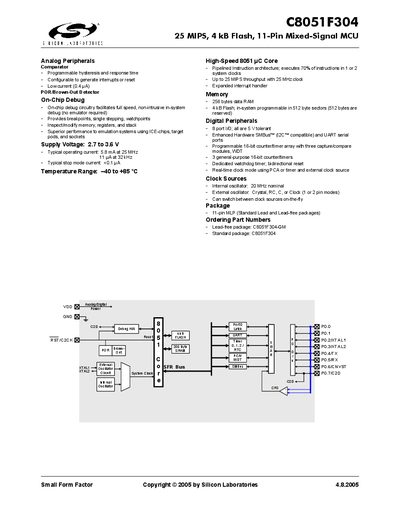

This document describes the features and characteristics of the Small Form Factor product introduced by Silicon Laboratories in 2005. The product is a mixed-signal MCU with 25 MIPS processing power, 4 kB flash, and 256 bytes of SRAM. It also includes features such as a comparator, power-on reset/brown-out detector, and on-chip debug circuitry. The product is suitable for low-power and small-size applications.
The C8051F304 is an 11‑pin mixed‑signal microcontroller featuring a high‑speed 8051‑core capable of up to 25 MIPS at 25 MHz, 4 kB Flash, 256 bytes of data RAM, and a range of analog and digital peripherals such as comparators, programmable timers, and an on‑chip debugger. It operates from 2.7 V to 3.6 V and supports a temperature range of –40 °C to +85 °C.
The device is offered in a standard 11‑pin MLP package and a lead‑free variant (C8051F304‑GM). Electrical specifications include a typical operating current of 5.8 mA at 25 MHz and a shutdown current below 0.1 pA. Detailed pin‑out and package drawings are provided for hardware designers.
| Core speed | Up to 25 MIPS at 25 MHz |
|---|---|
| Flash memory | 4 kB |
| Data RAM | 256 bytes |
| Supply voltage | 2.7 V to 3.6 V |
| Typical operating current (25 MHz) | 5.8 mA |
| Temperature range | ‑40 °C to +85 °C |
| Package type | 11‑pin MLP (standard and lead‑free) |
| Lead‑free package part number | C8051F304‑GM |
| Standard package part number | C8051F304 |
The device operates from 2.7 V to 3.6 V.
It includes 4 kB of Flash memory.
Typical operating current is 5.8 mA at 25 MHz.
It is offered in a standard 11‑pin MLP package (C8051F304) and a lead‑free version (C8051F304‑GM).
