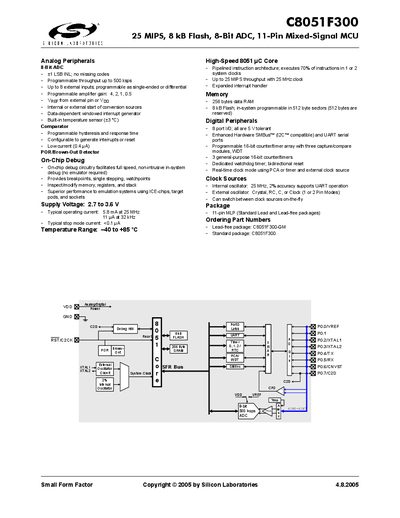

The C8051F300 is a 25MIPS, 8kB Flash, 8-Bit ADC, 11-Pin Mixed-Signal MCU with integrated analog peripherals, comparator, POR/Brown-Out detector and on-chip debug circuitry
The C8051F300 is an 11‑pin mixed‑signal microcontroller featuring a 25 MIPS 8051 core, 8 kB flash, 256 bytes RAM, and integrated 8‑bit ADC with up to 500 ksps throughput. It includes analog peripherals such as programmable gain amplifiers, comparators, and a temperature sensor, as well as digital peripherals like UART, SMBus, timers, and watchdog.
The document lists detailed electrical specifications, including a supply voltage range of 2.7 V to 3.6 V, current consumption figures for various operating modes, and package information for both standard and lead‑free 11‑pin MLP variants. It also provides pin‑out details and development kit references.
| Supply Voltage | 2.7 V to 3.6 V |
|---|---|
| Flash Memory | 8 kB |
| Data RAM | 256 bytes |
| ADC Resolution | 8 bits |
| ADC Throughput | 500 ksps |
| Package Type | 11‑pin MLP (standard and lead‑free) |
| Supply Current @25 MHz | 58 mA |
The C8051F300 operates from 2.7 V to 3.6 V.
It includes 8 kB of flash memory.
The ADC provides 8‑bit resolution with a maximum throughput of 500 ksps.
The device is offered in an 11‑pin MLP package, both standard leaded and lead‑free versions.
