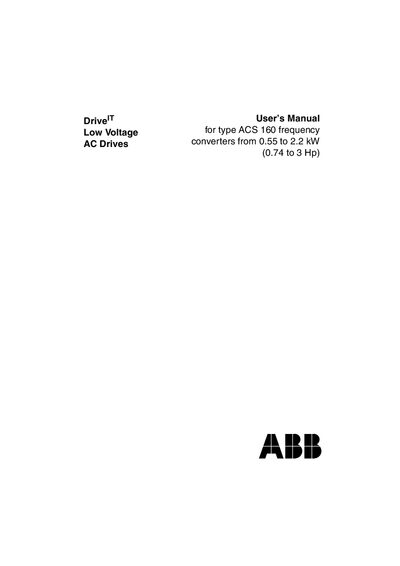

This manual covers all aspects of the ABB ACS 160 low‑voltage AC drive, beginning with safety warnings and the requirement that only a competent electrician perform installation and service. It details the installation process, mounting options for wall or motor, and the necessary wiring and terminal connections.
The document also explains the drive’s operation, including control modes, programming, parameter settings, and application macros. Technical data such as power ratings, input voltage, switching frequency, and protection limits are provided for proper selection and use.
| Input voltage | 380‑500 V ±10 % |
|---|---|
| Switching frequency | 4 kHz (standard) / 8 kHz (low noise) |
| Continuous output current I₂N | 1.8 A – 5.4 A |
| Overtemperature limit | 105 °C (221 °F) |
Only a competent electrician should work on the drive, wait at least five minutes after disconnecting the supply, and measure the DC voltage at terminals R+ and X4‑2 before removing the cover.
The drive accepts an input voltage of 380 V to 500 V with a tolerance of ±10 %.
The standard switching frequency is 4 kHz, and a low‑noise option of 8 kHz is also available.
