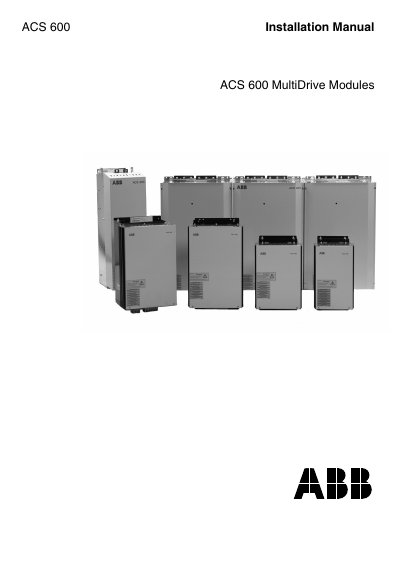

This document is the installation manual for ACS 600 MultiDrive modules by ABB Oy. The manual includes an overview of the equipment, cabinet assembly, and power connections.
The ACS 600 Installation Manual provides step‑by‑step instructions for installing and designing a cabinet for the ACS 600 MultiDrive Modules. It includes guidance on cabinet layout, cooling, EMC compliance, power connections, busbar material, tightening torques and earthing.
Additional sections cover wiring diagrams, control unit connections, mechanical installation, and appendices with circuit diagrams and a type‑code key. The manual is intended for engineers and technicians responsible for integrating the modules into drive systems.
| Recommended busbar material | Tin‑plated copper |
|---|---|
| Torque for M10 screw | 35‑40 Nm |
It contains instructions for installing and designing a cabinet for ACS 600 MultiDrive Modules components.
Tin‑plated copper is recommended; aluminium busbars can be used with anti‑oxidant joint compound.
The tightening torque for M10 screws is 35 Nm to 40 Nm.
