This document introduces water-cooled ACS 600 MultiDrive Modules. It covers the differences between water-cooled and air-cooled modules, the principle of water cooling, the cooling of the power modules, and the available water-cooled modules.

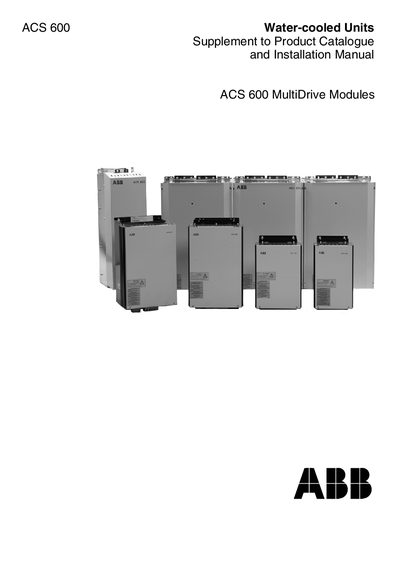

This supplement adds information specific to the water‑cooled units of the ABB ACS 600 MultiDrive Modules range. It complements the main product catalogue and installation manual by detailing differences and additional data for water‑cooled configurations.
The document includes an overview of water‑cooled components, installation guidance, technical specifications, dimensional drawings and circuit diagrams, as well as a list of advantages such as compact size, reduced noise and high IP protection.
| Minimum Water Temperature | 0 °C |
|---|---|
| Freeze Protection | 6.0 |
| Water/Glycol Concentration | 00 |
| Nominal Values | 0.0 |
Water‑cooled modules are about 30 % smaller, eliminate the need for high‑volume air cooling ducts, reduce cleaning, lower audible noise and provide a high protection (IP) degree.
Approximately 70 % of the power loss of the supply and drive modules is transferred to the coolant.
A totally closed cabinet must be equipped with air‑to‑water heat exchangers.
