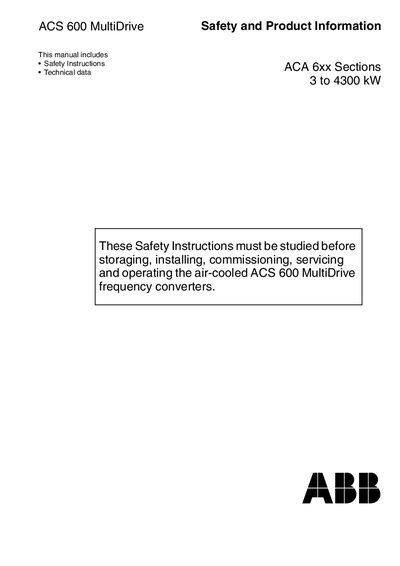

Introduces the safety and product information of ACA 6xx Sections 3 to 4300 kW ACS 600 MultiDrive, including safety instructions and technical data.
This manual covers all aspects needed to safely handle the ACS600 MultiDrive, including comprehensive safety instructions, hardware description, cable selection, and mechanical and electrical installation. It also details the commissioning steps for the drive sections and optional modules.
Additional sections provide technical data such as ratings, dimensions, weights, EMC compliance, and emergency stop device configurations, along with reference tables for components, fuses, and wiring diagrams.
| Power Rating | 3 to 4800 kW |
|---|---|
| Voltage Rating | 380‑415 V |
| Voltage Rating | 525‑690 V |
| Dimensions and Weights (400 V) | see technical data |
The safety instructions must be studied before storing, installing, commissioning, servicing and operating the air‑cooled ACS600 MultiDrive.
