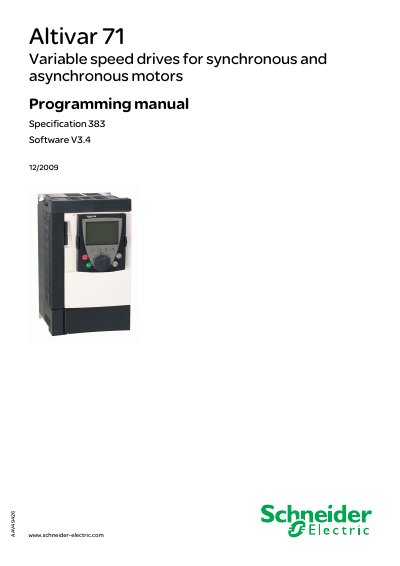

This document is about the programming manual of Altivar 71 variable speed drives
The Altivar 71 programming manual provides detailed instructions for configuring and programming the variable speed drive. It includes safety warnings, factory default settings, and step‑by‑step procedures for using the integrated display terminal.
The document also lists all software enhancements across versions, explains each menu and parameter, and offers guidance on fault management, communication setup, and maintenance tasks.
| Maximum output frequency | 1600 Hz |
|---|---|
| Default motor frequency | 50 Hz |
| Switching frequency | 2.5 kHz or 4 kHz |
| Analog output AO1 range | 0‑20 mA |
The drive is factory‑set to a motor frequency of 50 Hz.
The maximum output frequency can be up to 1600 Hz, depending on the drive rating and control profile.
