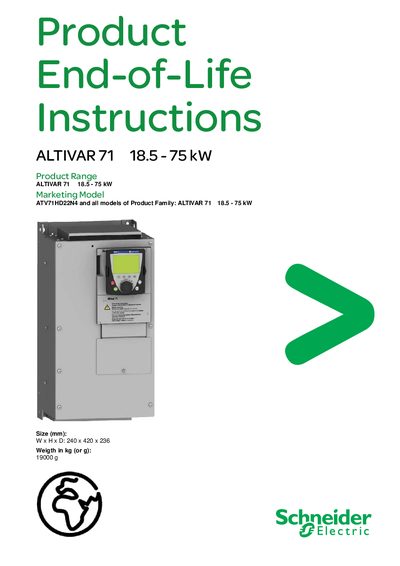

This document describes the end-of-life treatment methods for ALTIVAR 71 18.5 - 75 kW products
This guide provides the recommended procedures for the end‑of‑life treatment of the Schneider Electric ALTIVAR71 drive, including steps for reuse, depollution, dismantling and shredding to recover materials and energy.
It lists the component groups that must be removed according to the WEEE directive, gives weight breakdowns for each group, and includes safety precautions such as removing all power and waiting 15 minutes before servicing.
| Power rating | 18.5‑75 kW |
|---|---|
| Size (W x H x D) | 240 x 420 x 236 mm |
| Weight | 19000 g |
All power must be removed and you should wait 15 minutes before beginning any service work.
Heavy PCBA (power), Light PCBA (communication), electrolytic capacitors, plastics without brominated FR, and other listed parts must be removed following the WEEE directive.
The marketing model number is ATV71HD22N4.
