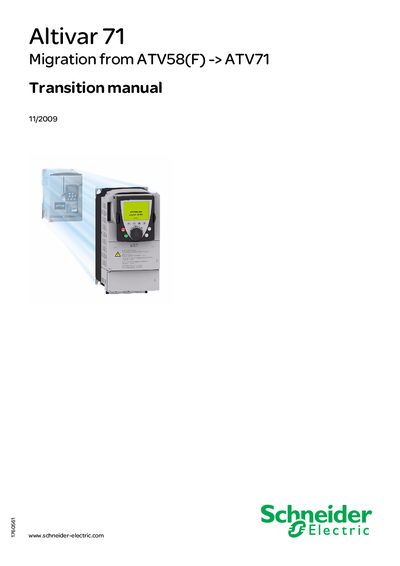

Schneider Altivar 71 Transition Manual

This document describes how to upgrade an Altivar 58(F) drive to an Altivar 71 drive

Brand: Schneider
Category: Motor
Document type: Installation Guide
Language: English
Pages: 83
File format: PDF
File size: 3.3 MB
Published: 21 March, 2012
Updated: 30 September, 2023
Model: ALTIVAR71
MD5 checksum: 6138885927A0EB752248E61F3045416E
PDF: Schneider Altivar 71 Transition Manual PDF

About this manual

This transition manual explains how to replace an Altivar 58(F) drive with an Altivar 71, covering catalog number determination, required options, and installation steps. It also provides recommendations for wiring, mounting, and communication setup.

The document includes tables of contents for catalog selection, power circuit options, mounting accessories, control circuit options, and detailed communication‑network configurations such as Modbus, CANopen, Profibus, and DeviceNet.

What's inside

Determining catalog numbers
Choosing the Altivar 71 catalog number
Selecting power circuit options
Mounting accessories
Control circuit options
Installation
Communication options
Drive setup
Comparison of dimensions

Specifications

Maximum rated power (single‑phase)	7.5 kW
Maximum rated power (three‑phase)	15 kW
Supported input voltage	200‑240 V single‑phase, 200‑240 V three‑phase, 380‑480 V three‑phase

Frequently asked questions

What is the purpose of this document?

The document helps you replace an Altivar 58(F) with an Altivar 71.

Which software is used for the migration?

The PowerSuite v2.20 software workshop is used to migrate the Altivar 58(F) configuration to an Altivar 71.

How do I identify the existing Altivar 58(F) drive?

Make an inventory of your Altivar 58(F) installation and note the drive catalog number on the nameplate.
