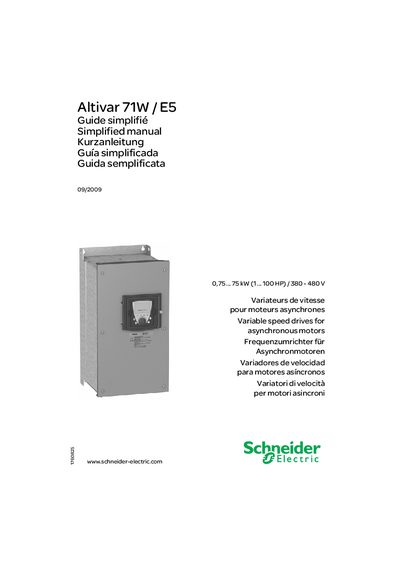

This manual describes how to install, use and maintain the Schneider Electric Altivar 71W / E5 variable speed drive, including installation precautions, component introduction, installation guide, operating instructions, maintenance information, etc.
This manual covers important safety information, handling, storage, and preliminary recommendations for the Altivar 71W/E5 variable speed drive. It explains the required precautions before installation, the steps to mount and wire the drive, and how to configure the graphical terminal and menu settings.
The document also includes detailed fault diagnostics, causes, and corrective procedures, as well as guidelines for commissioning, maintenance, and ensuring electromagnetic compatibility. Technical data such as power rating and supply voltage are provided for proper selection and operation. This manual is written in French.
| Power rating | 0.75 – 75 kW (1 – 100 HP) |
|---|---|
| Supply voltage | 380 – 480 V |
It indicates a hazardous situation that can cause death, serious injury, or damage to equipment.
Wait at least 15 minutes to allow the DC bus capacitors to discharge before measuring bus voltage.
Power the drive at least every two years for a minimum of 5 hours to restore capacitor performance.
