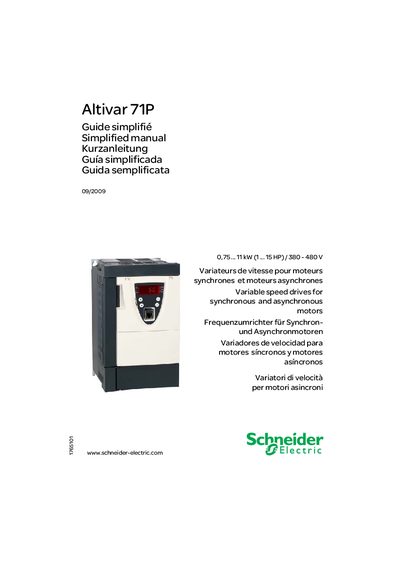

This document is a simplified manual for Schneider Electric's Altivar 71P variable speed drives, providing information on the features and characteristics of the product, which is suitable for both synchronous and asynchronous motors.
The Simplified Manual provides essential safety information, installation steps, wiring diagrams, and troubleshooting for the Altivar 71P variable‑speed drive. It covers handling, mounting, electrical connections, and commissioning procedures, with special notes on IT‑network use and electromagnetic compatibility.
Key sections include important safety warnings, preliminary recommendations, step‑by‑step mounting instructions, wiring schematics, and a fault‑diagnosis guide. The document also details procedures for applying voltage after long storage and guidelines for periodic re‑energisation to maintain capacitor health. This manual is written in French.
| Power rating | 0.75 – 11 kW (1 – 15 HP) |
|---|---|
| Input voltage range | 380 – 480 V |
It indicates a risk of electrocution that can cause bodily injury or death if the instructions are not followed.
Wait 15 minutes to allow the DC‑bus capacitors to discharge before proceeding.
