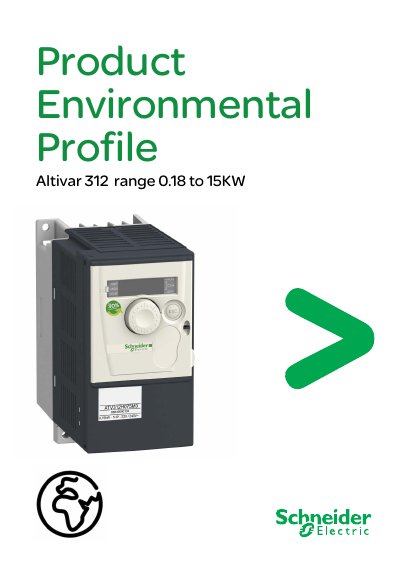

This document introduces the environmental impact of the Altivar 312 series products, including product range, constituent materials, manufacturing process, etc.
The Altivar 312 range (0.18 kW to 15 kW) is designed to control and vary the rotational speed of asynchronous electric motors, available for 200‑240 V, 380‑500 V and 525‑600 V single‑ or three‑phase supplies. The document presents the product’s environmental profile, including material composition, manufacturing, distribution and utilisation phases.
Life‑cycle assessment was performed according to ISO 14040, showing a recyclability potential of 65 % and detailing end‑of‑life recommendations. The analysis also provides energy consumption data, packaging mass, and compliance with the RoHS directive.
| Power rating range | 0.18 to 15 kW |
|---|---|
| Supported voltages | 200‑240 V, 380‑500 V, 525‑600 V, single or three phase |
| Internal power consumption | 23 W to 628 W |
| Product mass (0.18 kW version) | 1155 g |
| Packaging mass | 405 g |
| Aluminium content | 36.5 % |
| Recyclability ratio | 65 % |
It is intended for the control and variation of the rotational speed of an asynchronous electric motor.
The products are designed in conformity with the RoHS directive (2002/95/EC).
The calculated recyclability ratio for the range is 65 %.
