This is an ATV12 variable frequency drive produced by Schneider Electric. It can be connected to a single motor with a motor cable length of less than 50 meters.

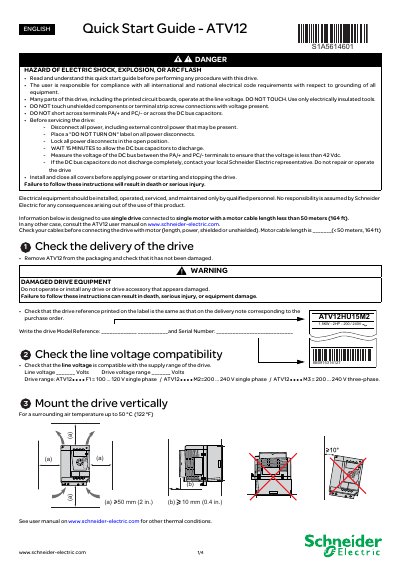

This Quick Start Guide provides essential safety warnings and preparation steps for installing and commissioning the Schneider Electric ATV12 variable‑frequency drive. It emphasizes that only qualified personnel should perform installation, servicing, and maintenance, and outlines required safety measures such as disconnecting power, locking disconnects, and waiting for DC bus capacitors to discharge.
The guide walks the user through checking the drive on delivery, verifying line voltage compatibility, wiring the drive to ground, motor and supply, selecting control mode (remote or local), and setting basic motor parameters. It also includes a brief description of the menu structure and parameter codes needed for basic operation.
| Maximum motor cable length | 50 m (164 ft) |
|---|---|
| Drive voltage range (single‑phase F1) | 100‑120 V |
| Drive voltage range (single‑phase M2) | 200‑240 V |
| Drive voltage range (three‑phase M3) | 200‑240 V |
| Power rating | 1.5 kW (2 HP) |
The motor cable must be less than 50 meters (164 ft).
