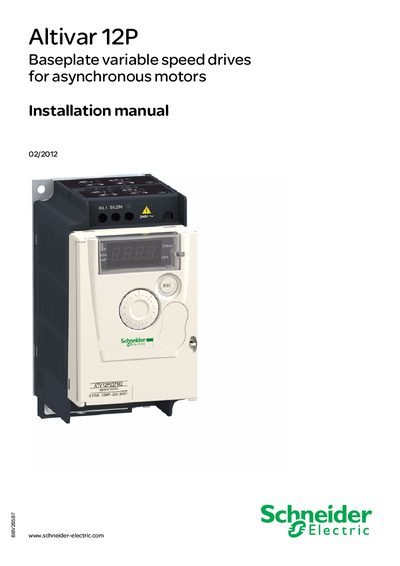

This manual describes the installation of Altivar 12P Baseplate variable speed drives.
The Schneider Altivar 12P installation manual provides detailed instructions for safely installing, wiring, and commissioning the base‑plate variable speed drive. It includes safety alerts, a checklist for receiving and mounting the drive, and guidance on selecting appropriate cooling systems.
Key sections cover the Conditions of Acceptability, mounting recommendations, thermal resistance information, and required precautions before servicing, such as power isolation and voltage verification. The document is intended for qualified personnel performing OEM or factory installations.
| Maximum baseplate temperature | 90 °C |
|---|---|
| Proximity temperature when mounted | above 70 °C |
| Cooling method | No self cooling (no heatsink fins or fan) |
The baseplate can reach up to 90 °C under normal conditions.
