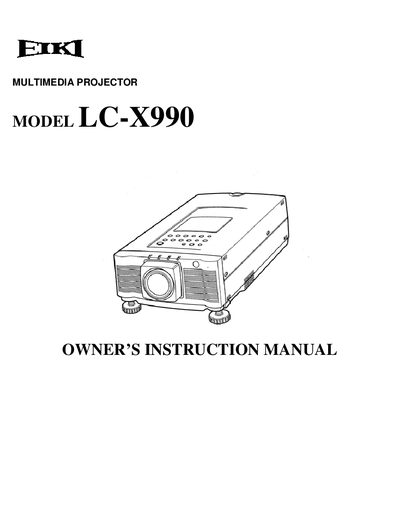

This document is the owner's manual for the LC-X990 multimedia projector. It introduces the safety use of the projector, product features and characteristics, and precautions.
This manual covers all safety warnings, proper handling, and installation requirements for the Eiki LC‑X990 multimedia projector. It explains how to set up the projector, connect video and computer sources, and use the remote control and built‑in functions such as laser pointer, keystone correction, and motor zoom.
Detailed technical specifications, troubleshooting tips, and maintenance procedures are included, along with a parts list and recommended accessories. The document is intended for end users and service technicians who need to operate or service the projector safely and efficiently.
| Projector Type | Multi-media Projector |
|---|---|
| Dimensions (W×H×D) | 10.7" (272 mm) × 5.7" (145.5 mm) × 16.2" (412.5 mm) |
| Net Weight | 15.2 lb (6.9 kg) |
| Color System | 6‑color system (PAL, SECAM, NTSC, NTSC4.43, PAL‑M, PAL‑N) |
| Projection Lamp | 200 W |
| Throw Distance | 4.6 ft (1.4 m) – 47.3 ft (14.4 m) |
| Power Input | 100 – 120 VAC, 50/60 Hz |
| Maximum Current | 3.6 A |
The projector can be focused from 4.6 ft (1.4 m) up to 47.3 ft (14.4 m).
It uses a 200‑watt type projection lamp.
Unplug the projector, do not use liquid or aerosol cleaners, and clean with a damp cloth.
The unit operates on 100 – 120 VAC, 50/60 Hz.
